Product Summary

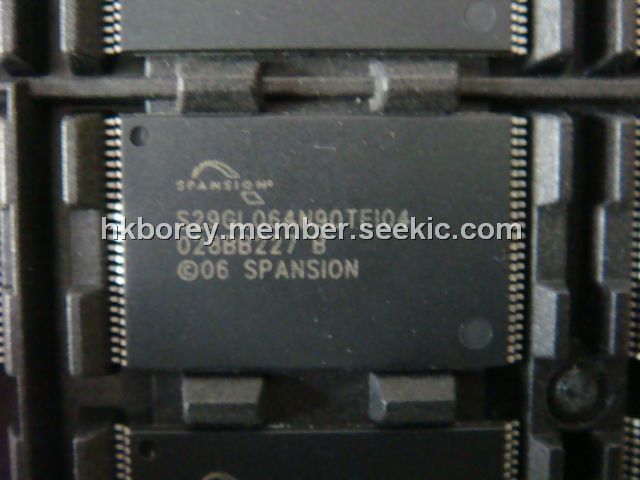

The S29GL064N90TFI040 is a 3.0-Volt single-power Flash memory manufactured using 110 nm MirrorBit technology. The device is a 64-Mb device organized as 4,194,304 words or 8,388,608 bytes. Depending on the model number, the S29GL064N90TFI040 has 16-bit wide data bus only, or a 16-bit wide data bus that can also function as an 8-bit wide data bus by using the BYTE# input. The device can be programmed either in the host system or in standard EPROM programmers.
Parametrics
Absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65℃ to +150℃ ; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –0.5 V to +4.0 V; A9, OE#, ACC and RESET#: –0.5 V to +12.5 V; All other pins: –0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
Features: (1)Software features: Advanced Sector Protection: offers Persistent Sector Protection and Password Sector Protection; Program Suspend & Resume: read other sectors before programming operation is completed; Erase Suspend & Resume: read/program other sectors before an erase operation is completed; Data# polling & toggle bits provide status; CFI (Common Flash Interface) compliant: allows host system to identify and accommodate multiple flash devices; Unlock Bypass Program command reduces overall multiple-word programming time; (2)Hardware features: WP#/ACC input accelerates programming time (when high voltage is applied) for greater throughput during system production. Protects first or last sector regardless of sector protection settings on uniform sector models; Hardware reset input (RESET#) resets device; Ready/Busy# output (RY/BY#) detects program or erase cycle completion.

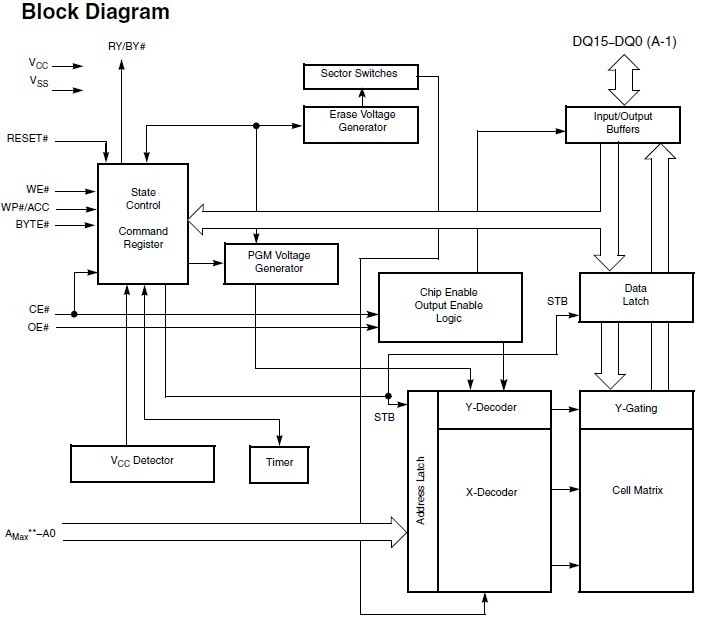

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 S29GL064N90TFI040 |
Spansion |
Flash 3V 64Mb Float Gate highest address 90s |
Data Sheet |
|
|
||||||||||||
