Product Summary
The K1V24 is a Sidac.
Parametrics
Absolute maximum ratings: (1)Storage Temperature, Tstg: -40～125 ℃; (2)Operating Junction Temperature, Tj: 125 ℃; (3)Maximum Off-state Voltage, VDRM: 180 V; (4)RMS On-state Current, IT: 1 A when Tl = 108℃, 50Hz sine wave (θ = 180°); (5)Critical Rate of Rise of On-state Current, diT/dt: 80 A/μs.
Features
Electrical characteristics: (1)Breakover Voltage, VBO: 220～250 V when IB = 0, 50Hz sine wave; (2)Off-state Current, IDRM: Max 10 μA when VD = VDRM; (3)Breakover Current, IBO: Max 0.5 mA; (4)Holding Current, IH: TYP 20 mA; (5)On-state Voltage, VT: Max 1.5 V when IT = 1A; (6)Switching Resistance, RS: Min 0.1 kΩ; (7)Thermal Resistance, θjl: Max 15 ℃/W when Junction to lead.

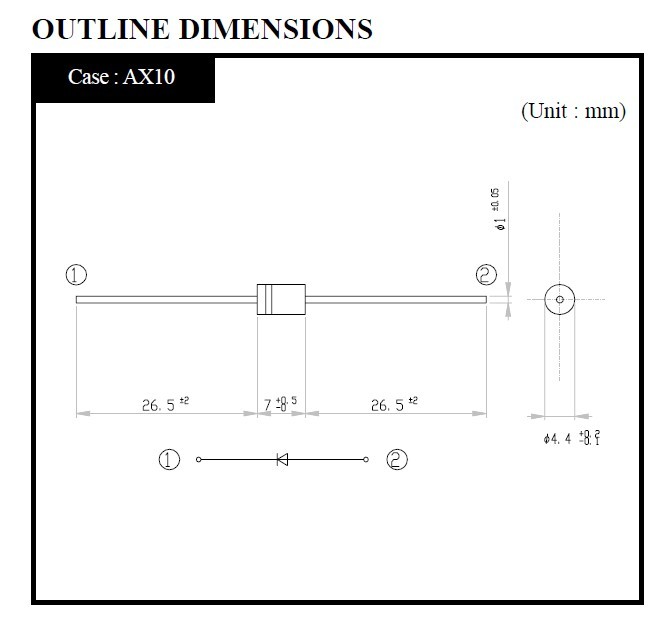

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 K1V24-7061 |
Shindengen |
Sidacs ITSM=20 VBO= 220-250 |
Data Sheet |
Negotiable |
|
||||||||||||||
|
K1V24-7060 |
Shindengen |
Sidacs ITSM=20 VBO= 220-250 |
Data Sheet |
Negotiable |
|
||||||||||||||
|
K1V24-7000 |
Shindengen |
Sidacs ITSM=20 VBO= 220-250 |
Data Sheet |
Negotiable |
|
||||||||||||||
|
K1V24-4061 |
Shindengen |
Sidacs ITSM=20 VBO= 220-250 |
Data Sheet |
|
|
||||||||||||||
|
K1V24-4060 |
Shindengen |
Sidacs ITSM=20 VBO= 220-250 |
Data Sheet |
|
|
||||||||||||||
|
K1V24-4000 |
Shindengen |
Sidacs ITSM=20 VBO= 220-250 |
Data Sheet |
Negotiable |
|
||||||||||||||
|
K1V24(W)-4060 |
Shindengen |
Sidacs Bidirect 180V 1.0A |
Data Sheet |
|
|
||||||||||||||
|
K1V24(W) |
Shindengen |
Sidacs Sidac |
Data Sheet |
Negotiable |
|
||||||||||||||
