Product Summary
The DCH010505D is a miniature, 1W, 3kV isolated DC/DC converter. Featured in an industry standard SIP-7 footprint, the DCH010505D requires minimal external components, reducing board space. The DCH010505D provides both single and dual split-supply outputs. The use of a highly integrated package design results in highly reliable products with high power densities. High performance and small size makes the DCH010505D suitable for a wide range of applications including signal chain applications and ground loop elimination.
Parametrics
Absolute maximum ratings: (1)Input Voltage, 5V input models: 7V; (2)Storage temperature range: –40 to +125℃.
Features
Features: (1)Up To 78% Efficiency; (2)3k VDC Isolation; (3)UL60950 Certified Product (pending); (4)Industry Standard Footprint; (5)JEDEC SIP-7 Package.

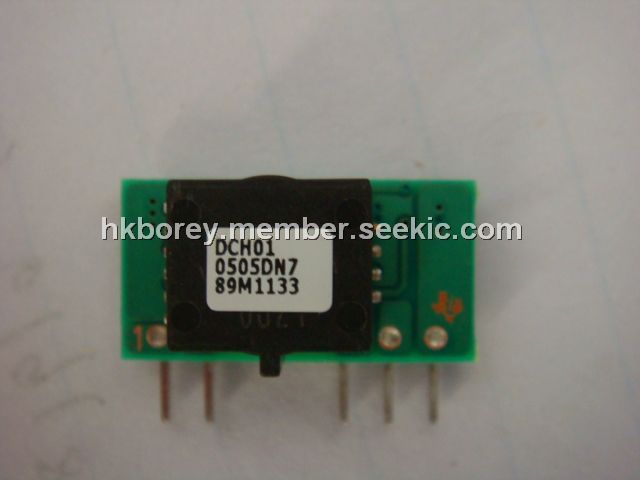

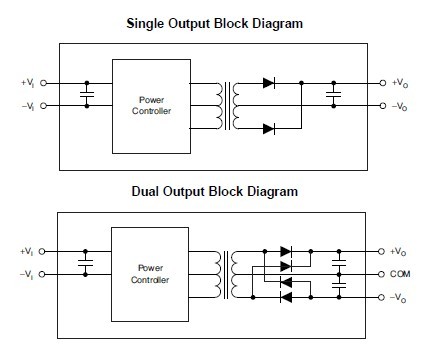

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DCH010505DN7 |
Texas Instruments |
DC/DC Converters Mini 1W 3kVDC Isolated DC-DC |
Data Sheet |
|
|
||||||||||||
