Product Summary

The RT424024 is a Power PCB Relay.

Parametrics

Contact data: (1)Contact configuration:2 CO or 2 NO; (2)Contact set:single contact; (3)Type of interruption:micro disconnection; (4)Rated current 8 A, UL: 10 A; (5)Rated voltage / max.switching voltage AC:250/400 VAC; (6)Limiting continuous current: UL: 10 A; (7)Maximum breaking capacity AC:2000 VA; (8)Limiting making capacity, max 4 s, duty factor 10%:15 A.

Features

Features: (1)2 pole 8 A, 2 CO or 2 NO contacts; (2)DC- or AC-coil; (3)Sensitive coil 400 mW; (4)Reinforced insulation; (5)WG version: Product in accordance to IEC60335-1 ; (6)RoHS compliant (Directive 2002/95/EC) as per product date code 0413.

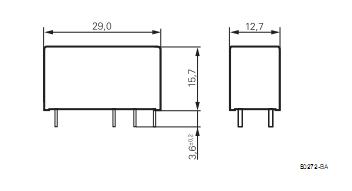

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RT424024
RT424024
TE Connectivity / Schrack
General Purpose / Industrial Relays DPDT 8A 24VDC PCB
Data Sheet
0-1: $1.33
1-25: $1.16
25-50: $1.05
50-100: $0.83
RT424024F
RT424024F
TE Connectivity / P&B
General Purpose / Industrial Relays 8 AMP 24VDC DPDT
Data Sheet
0-1: $1.49
1-25: $1.31
25-50: $1.22
50-100: $1.15
