Product Summary
The NC7WZ07P6X is a dual buffer with open drain outputs from Fairchild’s Ultra High Speed Series of TinyLogic in the space saving SC70 6-lead package. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range.
Parametrics
Absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7V; (2)DC Input Voltage (VIN): -0.5V to +7V; (3)DC Output Voltage (VOUT): -0.5V to +7V; (4)DC Input Diode Current (IIK) @ VIN &< -0.5V: -50 mA; (5)DC Output Diode Current (IOK) @ VOUT &&< -0.5V: -50 mA; (6)DC Output Current (IOUT): +50 mA; (7)DC VCC/GND Current (ICC/IGND): ±100 mA; (8)Storage Temperature (TSTG): -65qC to +150℃; (9)Junction Temperature under Bias (TJ): 150℃; (10)Junction Lead Temperature (TL) (Soldering, 10 seconds): 260℃; (11)Power Dissipation (PD) @ +85℃: 180 mW.
Features
Features: (1)Space saving SC70 6-lead package; (2)Ultra small MicroPak Pb-Free leadless package; (3)Ultra High Speed: tPZL 2.3 ns Typ into 50 pF at 5V VCC; (4)High IOL Output Drive: +24 mA at 3V VCC; (5)Broad VCC Operating Range: 1.65V to 5.5V; (6)Matches the performance of LCX when operated at 3.3V VCC; (7)Power down high impedance inputs/outputs; (8)Overvoltage tolerant inputs facilitate 5V to 3V translation; (9)Patented noise/EMI reduction circuitry implemented.

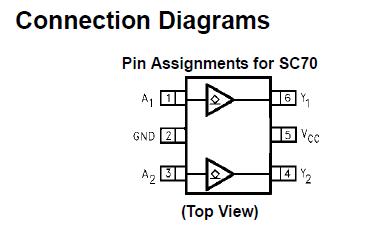

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NC7WZ07P6X |
Fairchild Semiconductor |
Buffers & Line Drivers UHS Dual Buffer |
Data Sheet |
|
|
||||||||||||
|
NC7WZ07P6X_Q |
Fairchild Semiconductor |
Buffers & Line Drivers UHS Dual Buffer |
Data Sheet |
Negotiable |
|
||||||||||||
